Industrial automation setup process: a step-by-step guide

Getting industrial automation right the first time demands far more than installing hardware and switching the power on. The industrial automation setup process is a structured, multi-phase undertaking where inadequate preparation, poor documentation, or skipped verification steps translate directly into costly rework, safety incidents, and delayed production starts. Operations managers and engineers working in manufacturing and process industries know this pressure well. This guide walks you through every critical phase, from pre-work planning to acceptance testing and commissioning sign-off, with practical advice grounded in current standards and real-world practice.

Table of Contents

• Key takeaways
• The industrial automation setup process: prerequisites and preparation
• Mechanical, electrical, and software installation checks
• Loop checks and system integration testing
• FAT, SAT, and commissioning best practices
• Troubleshooting common automation challenges
• My perspective on commissioning: what experience actually teaches you
• How Podtech supports your automation commissioning
• FAQ

Key takeaways

The industrial automation setup process: prerequisites and preparation

Most commissioning failures begin long before the first engineer sets foot on site. The foundation of a reliable industrial automation workflow is thorough pre-work, and this stage is frequently compressed under schedule pressure. Resist that pressure.

Start by reviewing every contractual specification, engineering drawing, and vendor data sheet in detail. You are specifically looking for discrepancies between what was designed, what was procured, and what has actually been manufactured. These gaps surface as wiring mismatches, incorrect I/O counts, or incompatible communication protocols. Finding them at your desk costs nothing. Finding them during commissioning costs days.

Before site work begins, your preparation checklist should cover:

• Confirmed system architecture and control philosophy documentation
• Approved loop diagrams, cable schedules, and instrument index
• Hardware delivery confirmation including PLCs, HMIs, drives, and field instruments
• Software version control, with all PLC and HMI programs at their approved release
• Testing equipment inventory: signal simulators, multimeters, calibration tools, and laptop with required software licences
• Named cross-functional team including process, electrical, and IT representation

Involving your control system vendor, instrument suppliers, and process engineers at this stage is not optional. Decisions made in isolation during preparation compound into integration problems during testing. Schedule a joint kickoff review before mobilisation and resolve every open technical query in writing.

Mechanical, electrical, and software installation checks

With preparation complete, you move into the first execution phase: verifying that everything has been installed correctly before any power is applied. This is where a disciplined step-by-step automation process pays off.

Mechanical installation verification comes first. Check equipment footprint and positioning against the approved general arrangement drawings. Verify shaft alignment on rotating equipment, confirm all fastener torque values have been applied to specification, and check that lubrication has been completed per manufacturer requirements. These checks are quick when done systematically and prevent bearing failures and misalignment trips in early operation.

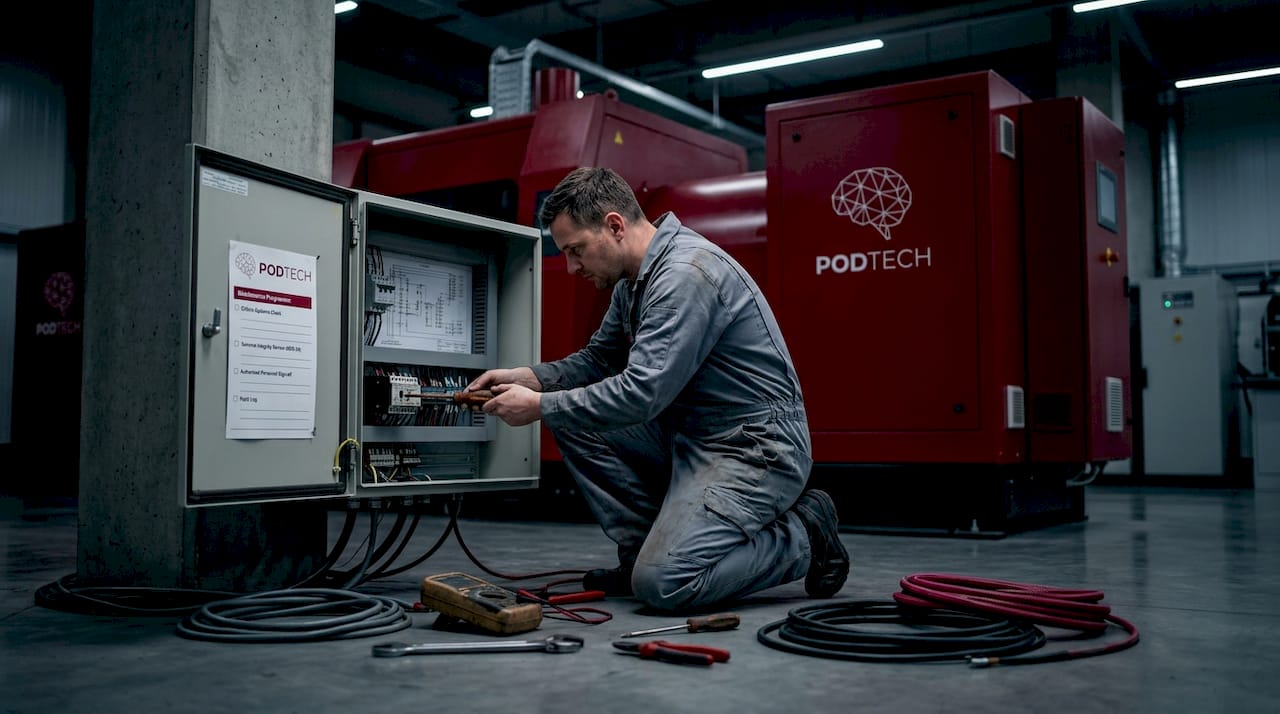

Electrical installation verification follows a structured sequence:

1. Confirm supply voltage at the distribution board against the system design specification.
2. Verify all panel wiring against the approved wiring diagrams, checking conductor colours, termination numbers, and cable gland integrity.
3. Confirm circuit breaker ratings match the protection coordination study.
4. Test earthing and bonding continuity on all control panels and field junction boxes.
5. Verify motor rotation direction before coupling to driven equipment.
6. Check all cable screens are terminated correctly and grounded at one end only.

A factory electrical safety checklist formalises these checks into a signed record, which is particularly important for audit purposes on sites operating under DSEAR or ATEX regulations.

Software installation verification runs in parallel with electrical checks. Confirm PLC firmware versions match the approved project build. Validate HMI software versions and check that the correct program revision is loaded. Cross-check every I/O address in the tag database against the approved instrument index. A single transposed tag at this stage can cause hours of fault-finding later.

Loop checks and system integration testing

Loop checks are where the industrial automation setup process transitions from installation verification to functional validation. Loop checks validate the entire control circuit from the sensor to the final control element by simulating the input signal and confirming the correct displayed value and physical response. This differs from simple calibration, which only verifies an instrument in isolation.

Performing a loop check systematically:

1. Isolate the loop from process and confirm it is safe to test.
2. Apply a simulated signal at the field instrument (4 mA for 0%, 20 mA for 100%, and at least one mid-range point).
3. Confirm the correct engineering unit value displays on the HMI and in the controller tag.
4. Verify associated alarms trigger at the correct setpoints.
5. Confirm the output signal drives the final control element (valve, VFD, or actuator) to the correct position or speed.
6. Record all results in the loop check dossier with the engineer’s signature and date.

Loop testing before system startup is critical for reducing process upsets and safety hazards by confirming full signal path integrity from field device to control room and back.

Beyond individual loops, system integration testing checks communication between devices. Validate the protocol configuration for every Modbus, Profibus, or Ethernet/IP link. Confirm that data from field devices appears correctly in the SCADA or DCS historian. Test that alarm states propagate correctly from the field through to the operator displays.

Digital tools for recording loop check results reduce transcription errors and make the dossier easier to review. Spreadsheet-based templates with automatic pass/fail marking are a minimum standard. Purpose-built commissioning software is worth the investment on projects with more than 200 loops.

FAT, SAT, and commissioning best practices

Acceptance testing is the formal quality gate for the industrial automation setup process, and understanding the distinction between each phase is critical for planning your timeline correctly.

Factory Acceptance Testing (FAT) is conducted at the manufacturer’s or system integrator’s facility before equipment is dispatched to site. Its purpose is to verify that the system has been built to specification in a controlled environment. FAT is your opportunity to identify design errors, software bugs, and integration issues before the equipment is transported and installed, where corrections become exponentially more expensive.

Key activities in a well-executed FAT include:

• Full functional testing of all control sequences against the approved functional design specification
• Simulation of all field inputs and verification of output responses
• Testing of all alarm and trip setpoints
• Verification of all operator interface screens and navigation
• Witnessed testing with the client’s operations and engineering teams present

FAT is conducted at the manufacturer before dispatch; SAT occurs on site after installation to validate performance under real conditions, and together they reduce costly rework by verifying design and integration at both stages.

For complex multi-vendor projects, Factory Integration Testing (FIT) sits between FAT and SAT. FIT addresses integration gaps that neither individual vendor FATs nor site testing alone can efficiently resolve. It is especially valuable where PLCs, drives, safety systems, skids, and supervisory software are supplied by different parties.

Site Acceptance Testing (SAT) begins once installation is complete and pre-energisation checks have been signed off. SAT confirms that the system performs correctly in its actual operating environment, with real field wiring, real network infrastructure, and real process interfaces. This is where environmental noise, grounding issues, network latency, and installation defects often reveal themselves.

Best practices for FAT, SAT, and commissioning include:

• Use approved test scripts with explicit pass/fail criteria before testing begins
• Ensure all punch-list items are logged, assigned, and closed formally
• Include operations personnel in witnessed tests so handover starts early
• Test abnormal conditions, not just normal operation, including trips, permissive failures, and communication loss
• Freeze software revisions during critical test windows to avoid uncontrolled changes
• Capture signed records for every completed test sheet and safety function

Commissioning itself is broader than FAT or SAT. It includes energisation, dry runs, sequence proving, process introduction, tuning, operator familiarisation, and final performance verification. A successful commissioning plan defines who has authority to energise, who can modify logic, what constitutes a safe state, and what evidence is required before moving to the next stage.

Troubleshooting common automation challenges

Even with strong preparation, commissioning rarely proceeds without issues. The difference between a controlled startup and a chaotic one is not whether problems appear, but how quickly and methodically the team isolates root causes.

Some of the most common automation setup problems include:

• I/O mismatches between drawings, PLC code, and actual field terminations
• Communication failures caused by incorrect IP addressing, node IDs, baud rates, or protocol mapping
• Noisy analogue signals due to poor shielding, grounding, or routing near power cables
• Unexpected interlock trips caused by logic assumptions that do not match the real process state
• Drive and motor issues such as incorrect parameter sets, rotation direction, or acceleration limits
• HMI confusion where operator screens do not reflect actual field naming or process sequence

The most effective troubleshooting approach is layered. Start at the physical layer before assuming a software defect. Confirm power, continuity, addressing, and signal presence. Then move to controller diagnostics, communication status, and finally application logic. Too many teams jump straight into code changes when the real issue is a swapped pair or an unlanded screen.

When fault-finding under time pressure, use this order of operations:

1. Make the system safe and confirm the current operating state.
2. Reproduce the fault consistently if possible.
3. Check the field device and wiring first, including polarity, continuity, and termination.
4. Review controller diagnostics for module faults, bad quality flags, or communication errors.
5. Compare live values to design intent in the cause-and-effect or functional specification.
6. Document the root cause and corrective action so the issue does not recur on the next loop or the next project.

One recurring lesson is that undocumented temporary fixes become permanent liabilities. If a bypass, forced bit, or manual override is used during troubleshooting, it must be logged, reviewed, and removed formally. Hidden temporary changes are a major source of startup risk.

My perspective on commissioning: what experience actually teaches you

On paper, commissioning looks linear. In reality, it is iterative, political, and highly sensitive to preparation quality. The technical steps matter, but the hidden variable is always coordination. The best projects are not the ones with zero issues; they are the ones where everyone knows the test sequence, the decision rights, and the documentation standard before the first cable is checked.

Experience also teaches that schedule pressure distorts judgement. Teams start accepting “close enough” on drawings, naming conventions, or test evidence because production wants the line running. That shortcut nearly always returns later as nuisance trips, unexplained alarms, or operator mistrust. Commissioning is the wrong phase to discover that your documentation culture is weak.

Another practical lesson is that operators should be brought in earlier than many engineering teams expect. A system can pass every formal test and still fail operationally if the HMI language, alarm priorities, or sequence behaviour do not match how the plant is actually run. Early operator involvement improves handover and exposes usability issues before they become production issues.

Finally, the most valuable commissioning teams treat documentation as part of the deliverable, not an administrative afterthought. Signed loop sheets, redlined drawings, software backups, cause-and-effect records, and safety test evidence are what make the system maintainable after the project team leaves. If the plant cannot support the system six months later, the setup was not truly complete.
